Transactions and States

The Endless blockchain stores three types of data:

• Transactions: Transactions represent an intended operation being performed by an account on the blockchain (e.g., transferring assets).

• States: The (blockchain ledger) state represents the accumulation of the output of execution of transactions, the values stored within all resources.

• Events: Ancillary data published by the execution of a transaction.

Only transactions can change the ledger state.

Transactions

Endless transactions contain information such as the sender’s account address, authentication from the sender, the desired operation to be performed on the Endless blockchain, and the amount of gas the sender is willing to pay to execute the transaction.

Transaction states

A transaction may end in one of the following states:

• Committed on the blockchain and executed. This is considered as a successful transaction.

• Committed on the blockchain and aborted. The abort code indicates why the transaction failed to execute.

• Discarded during transaction submission due to a validation check such as insufficient gas, invalid transaction format, or incorrect key.

• Discarded after transaction submission but before attempted execution. This could be caused by timeouts or insufficient gas due to other transactions affecting the account.

The sender’s account will be charged gas for any committed transactions.

During transaction submission, the submitter is notified of successful submission or a reason for failing validations otherwise.

A transaction that is successfully submitted but ultimately discarded may have no visible state in any accessible Endless node or within the Endless network. A user can attempt to resubmit the same transaction to re-validate the transaction. If the submitting node believes that this transaction is still valid, it will return an error stating that an identical transaction has been submitted.

The submitter can try to increase the gas cost by a trivial amount to help make progress and adjust for whatever may have been causing the discarding of the transaction further downstream.

Read more

See Endless Blockchain Deep Dive for a comprehensive description of the Endless transaction lifecycle.

Contents of a Transaction

A signed transaction on the blockchain contains the following information:

• Signature: The sender uses a digital signature to verify that they signed the transaction (i.e., authentication).

• Sender address: The sender's account address.

• Sender public key: The public authentication key that corresponds to the private authentication key used to sign the transaction.

• Payload: Indicates an action or set of actions Alice's behalf. In the case this is a Move function, it directly calls into Move bytecode on the chain. Alternatively, it may be Move bytecode peer-to-peer Move script. It also contains a list of inputs to the function or script. For this example, it is a function call to transfer an amount of Endless Coins from Alice account to Bob's account, where Alice's account is implied by sending the transaction and Bob's account and the amount are specified as transaction inputs.

• Gas unit price: The amount the sender is willing to pay per unit of gas, to execute the transaction. This is represented as Octa or units of 10-8 utility tokens.

• Maximum gas amount: The maximum gas amount in units of gas the sender is willing to pay for this transaction. Gas charges are equal to the base gas cost covered by computation and IO multiplied by the gas price. Gas costs also include storage with an EDS-fixed priced storage model. This is represented in gas units, not Octas (i.e., 10-8 Endless utility tokens). The final gas charged is equal to the gas price multiplied by units of gas required to process this transaction. The required units of gas should not exceed the maximum gas amount for the transaction to be successfully executed.

• Gas price (in specified gas units): This is the amount the sender is willing to pay per unit of gas to execute the transaction. Gas is a way to pay for computation and storage. A gas unit is an abstract measurement of computation with no inherent real-world value.

• Maximum gas amount: The maximum gas amount is the maximum gas units the transaction is allowed to consume.

• Sequence number: This is an unsigned integer that must be equal to the sender's account sequence number at the time of execution.

• Expiration time: A timestamp after which the transaction ceases to be valid (i.e., expires).

Types of transaction payloads

Within a given transaction, the two most common types of payloads include:

• An entry point

• A script (payload)

Currently, the Typescript SDK support both. This guide points out many of those entry points, such as endless_account::transfer and endless_account::create_account.

All operations on the Endless blockchain should be available via entry point calls. While one could submit multiple transactions calling entry points in series, many such operations may benefit from being called atomically from a single transaction. A script payload transaction can call any entry point or public function defined within any module.

See the tutorial on Your First Transaction for generating valid transactions.

The Endless REST API supports generating BCS-encoded transactions from JSON. This is useful for rapid prototyping, but be cautious using it in Mainnet as this places a lot of trust on the fullnode generating the transaction.

States

The Endless blockchain's ledger state, or global state, represents the state of all accounts in the Endless blockchain. Each validator node in the blockchain must know the latest version of the global state to execute any transaction.

Anyone can submit a transaction to the Endless blockchain to modify the ledger state. Upon execution of a transaction, a transaction output is generated. A transaction output contains zero or more operations to manipulate the ledger state called write sets emitting a vector of resulting events, the amount of gas consumed, and the executed transaction status.

Proofs

The Endless blockchain uses proof to verify the authenticity and correctness of the blockchain data.

Data within the Endless blockchain is replicated across the network. Each validator and fullnode's storage is responsible for persisting the agreed upon blocks of transactions and their execution results to the database.

The blockchain is represented as an ever-growing Merkle tree, where each leaf appended to the tree represents a single transaction executed by the blockchain.

All operations executed by the blockchain and all account states can be verified cryptographically. These cryptographic proofs ensure that:

• The validator nodes agree on the state.

• The client does not need to trust the entity from which it is receiving data. For example, if a client fetches the last n transactions from an account, a proof can attest that no transactions were added, omitted or modified in the response. The client may also query for the state of an account, ask whether a specific transaction was processed, and so on.

Versioned database

The ledger state is versioned using an unsigned 64-bit integer corresponding to the number of transactions the system has executed. This versioned database allows the validator nodes to:

• Execute a transaction against the ledger state at the latest version.

• Respond to client queries about ledger history at both current and previous versions.

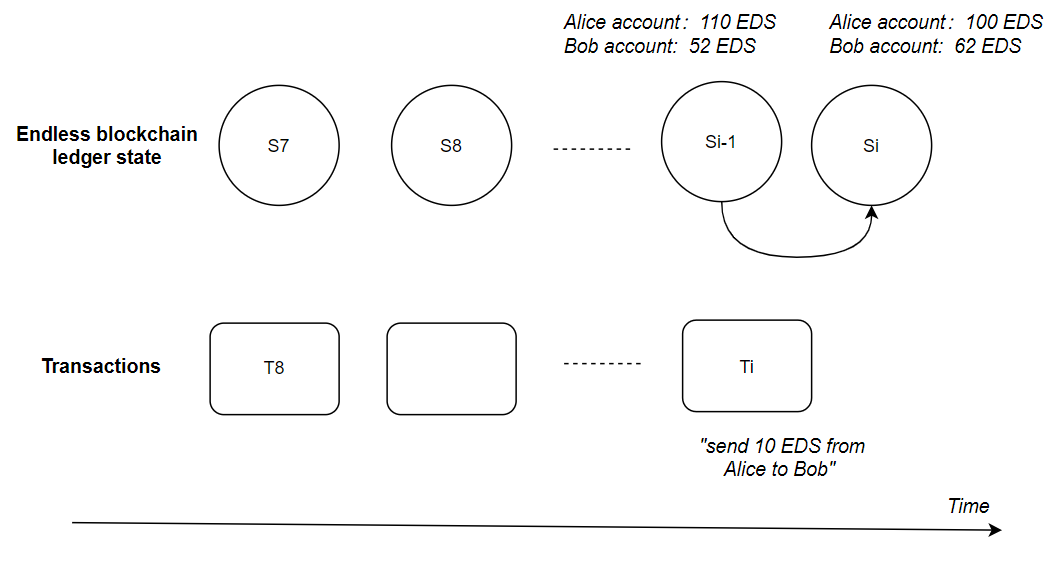

Transactions change ledger state

transactions-change-ledger-state

The above figure shows how executing transaction $T_i$ changes the state of the Endless blockchain from $S_{i-1}$ to $S_i$.

In the figure:

• Accounts A and B: Represent Alice's and Bob's accounts on the Endless blockchain.

• $S_{i-1}$ : Represents the ($i$-1) the state of the blockchain. In this state, Alice's account A has a balance of 110 EDS (Endless coins), and Bob's account B has a balance of 52 EDS.
• $T_i$ : This is the $i$-th transaction executed on the blockchain. In this example, it represents Alice sending 10 EDS to Bob.
• Apply(): This is a deterministic function that always returns the same final state for a specific initial state and a specific transaction. If the current state of the blockchain is $S_{i-1}$, and transaction $T_i$ is executed on the state $S_{i-1}$, then the new state of the blockchain is always $S_i$. The Endless blockchain uses the Move language to implement the deterministic execution function Apply().
• $S_i$ : This is the $i$-the state of the blockchain. When the transaction $T_i$ is applied to the blockchain, it generates the new state $S_i$ (an outcome of applying Apply($S_{i-1}, T_i$) to $S_{i-1}$ and $T_i$). This causes Alice’s account balance to be reduced by 10 to 100 EDS and Bob’s account balance to be increased by 10 to 62 EDS. The new state $S_i$ shows these updated balances.
